Corrugated GC Roofing Sheet Making Machine
Category: Roll Forming & Sheet Metal | Manufactured by Gagan Engineering Works, Khopoli, Maharashtra

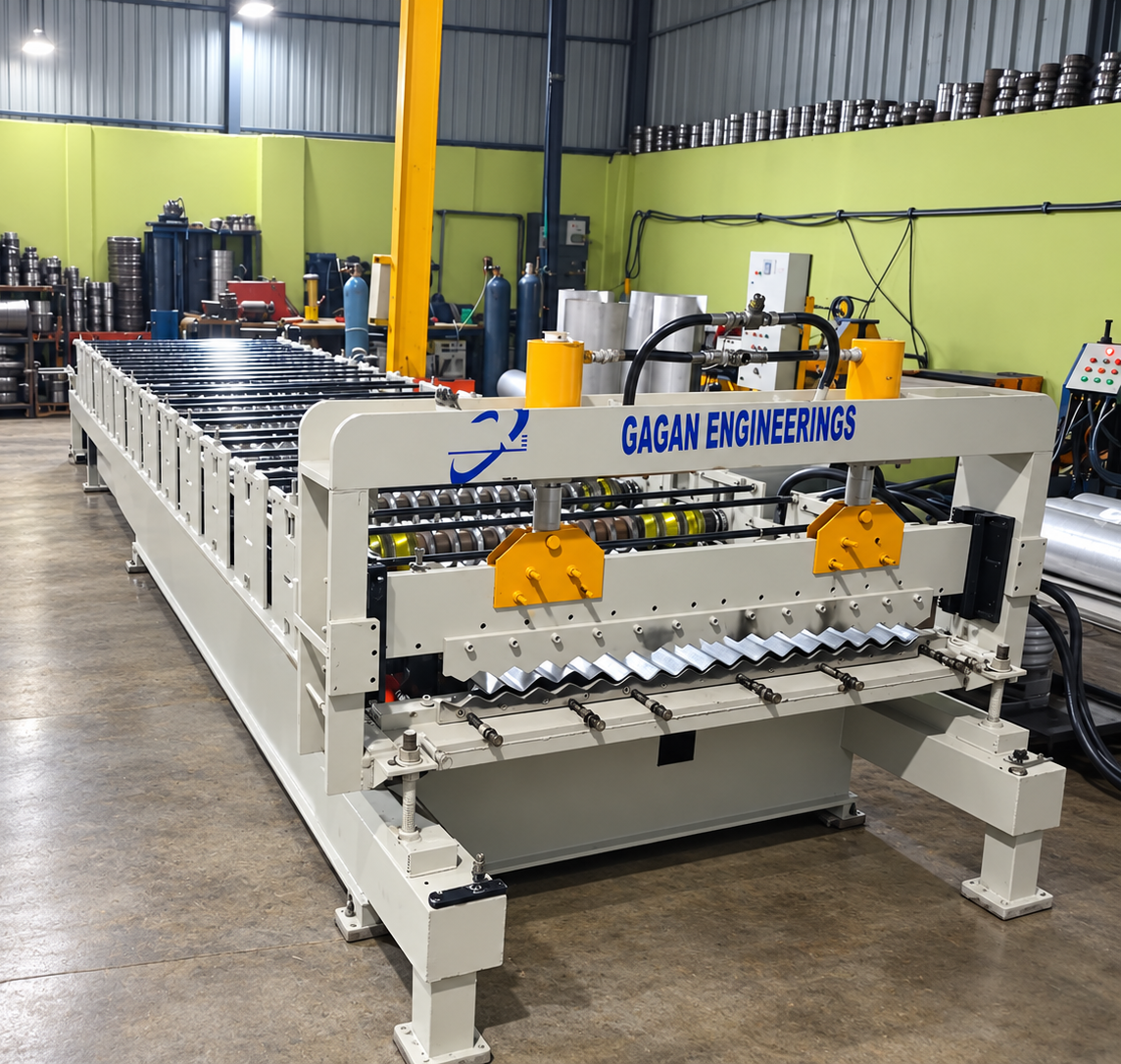

The Corrugated GC Roofing Sheet Making Machine by Gagan Engineering Works is a heavy-duty automatic roll forming system designed for producing high-quality corrugated GC, GI and roofing sheets. It features 14 forming stations, EN9 hard chrome-plated rollers, chain drive transmission, PLC control and hydraulic cutting for accurate and consistent production. Built for continuous industrial use, the machine offers reliable sheet feeding, automatic length and quantity measurement, and can be customized according to the required profile, sheet width and electrical configuration.
Technical Specifications — Corrugated GC Roofing Sheet Making Machine
| Specification | Value |
|---|---|
| Machine Type | Automatic Corrugated GC Roofing Sheet Roll Forming Machine |
| Application | Corrugated Roofing Sheet / GC Sheet Production |
| Number of Forming Stations | 14 Stations |
| Drive System | Chain Drive |
| Main Gearbox | 1 Set |
| Main Motor Power | 7.5 HP |
| Roller Material | Hard Chrome Plated |
| Production Capacity | Up to 2.5 Ton/hour* |
| Length Accuracy | ±1 mm |
| Machine Control | PLC / HMI Controlled |
| Cutting System | Hydraulic Shearing |
| Cutting Operation | Automatic PLC-Controlled Cutting |
| Cutting Blade Material | Cr12, Hardened / Quenched |
| Hydraulic Power Pack | 5.5 kW |
| Hydraulic Pump Type | Gear Pump |
| Entry Guide | Adjustable Sheet Entry Guide |
| Length Measurement | Automatic |
| Quantity Measurement | Automatic |
| PLC Brand / HMI Brand | Xinje / Siemens |
| HMI Size | 7-inch |
| HMI Protection | IP65 Front Panel |
| VFD Brand | Delta |
| Electrical Supply | 440 V, 50 Hz, 3 Phase* |
| Operating Language | English |
| Compatible Materials | GI / PPGI / Compatible Roofing Sheet Material* |
| Manufacturer | Gagan Engineering Works |
Request Price Quotation for Corrugated GC Roofing Sheet Making Machine
Get direct manufacturer pricing, delivery timeline, and custom specifications from Gagan Engineering Works:
- Phone: +91 83294 65245
- Email: gaganengineerings@gmail.com
- WhatsApp: Chat on WhatsApp
- Online RFQ: Submit Quotation Request
Warranty: 1 Year Comprehensive Manufacturer Warranty with Pan-India On-Site Commissioning
Export: Worldwide shipping from JNPT Mumbai Port. Custom voltage (220V/380V/415V/480V, 50Hz/60Hz)
Frequently Asked Questions — Corrugated GC Roofing Sheet Making Machine
Question: What is the production capacity of the Corrugated GC Roofing Sheet Making Machine?
Answer: The machine is designed for a production capacity of up to 2.5 tons per hour, depending on the sheet thickness, material, profile dimensions, operating speed and coil quality.
Question: How many forming stations does the corrugated roofing sheet machine have?
Answer: The machine is equipped with 14 roll forming stations. The stations progressively form the metal sheet into the required corrugated roofing profile while maintaining consistent dimensions and smooth material flow.
Question: What materials can be used with this GC roofing sheet making machine?
Answer: The machine is suitable for processing GI, PPGI and compatible metal roofing sheet materials. Material thickness, width and grade should be confirmed according to the required corrugated profile before manufacturing the machine.
Question: How are finished corrugated roofing sheets cut to length?
Answer: The machine uses an integrated hydraulic shearing system controlled by the PLC. The required sheet length and quantity can be entered through the HMI, after which the machine automatically measures and cuts the finished roofing sheets.
Question: What is the cutting and length accuracy of the machine?
Answer: The machine is designed for a length tolerance of approximately ±1 mm under suitable operating conditions. Actual accuracy can depend on raw material quality, profile configuration and operating parameters.
Question: What PLC and electrical components are used in the machine?
Answer: The standard configuration can include a Xinje PLC and 7-inch HMI, Delta VFD, Omron encoder and Schneider Electric protection and switching components. Electrical brands and control configurations can also be customized according to customer requirements.
Question: What type of rollers and shafts are used in the roll forming machine?
Answer: The machine uses 70 mm diameter forming shafts with precision-machined EN9 steel rollers with hard chrome plating, designed to provide accurate profiling, durability and reliable operation during continuous production.
Question: Can the corrugated roofing sheet profile be customized?
Answer: Yes. Gagan Engineering Works can manufacture the roll forming machine according to the customer's required corrugation profile, sheet width, material thickness, electrical configuration and production requirements. A profile drawing or roofing sheet sample can be provided for technical evaluation.
Question: What is the hydraulic power pack capacity?
Answer: The machine is equipped with a 5.5 kW hydraulic power pack using a gear pump. It supplies hydraulic power to the cutting system for automatic sheet cutting during production.
Question: Where is the Corrugated GC Roofing Sheet Making Machine manufactured?
Answer: The machine is manufactured by Gagan Engineering Works in Khopoli, Maharashtra, India. The company manufactures roll forming, roofing sheet and sheet-metal processing machinery for customers in India and export markets.
