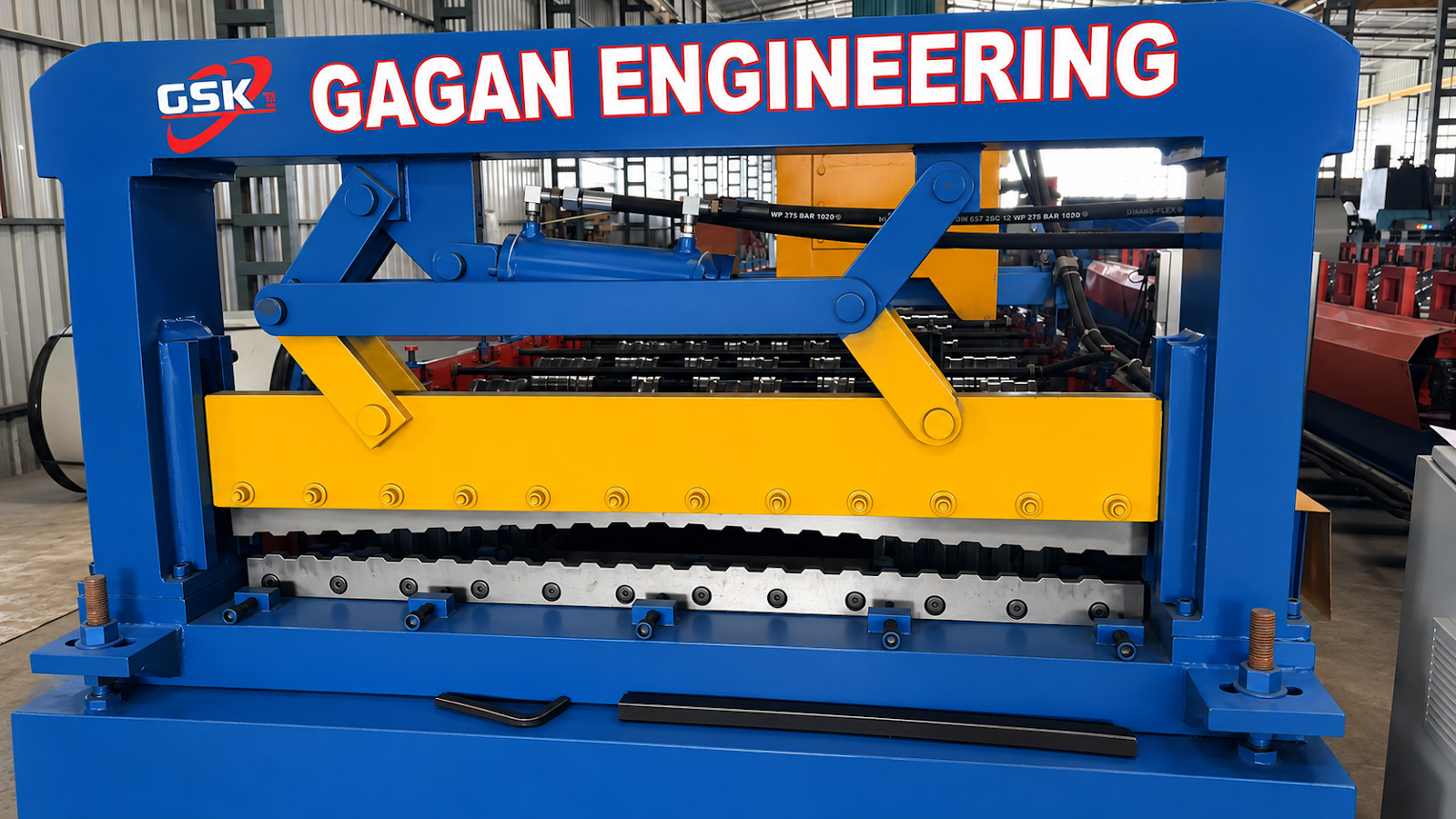

23 Nali Liner Sheet Roll Forming Machine - 1220 mm
Category: Roll Forming & Sheet Metal | Manufactured by Gagan Engineering Works, Khopoli, Maharashtra
The Gagan Engineering Works 23 Nali Liner Sheet Roll Forming Machine is designed for continuous production of precision liner and cladding profiles from colour-coated and galvanized steel coils. The machine handles 0.30-0.80 mm material with 1220 mm input width and uses an 18-station roll forming system for smooth, consistent profile formation. The high-speed configuration features EN9 hard-chrome rollers, PLC automation, automatic length measurement and hydraulic cutting for repeatable production and clean finished sheets. It is suitable for manufacturing liner sheets used in industrial wall cladding, ceilings, partitions, side walls, facades and PEB applications. Liner-profile industry references similarly describe these products as multi-rib sheets primarily intended for wall and ceiling/cladding applications.
Technical Specifications — 23 Nali Liner Sheet Roll Forming Machine - 1220 mm
| Specification | Value |
|---|---|
| Machine Type | Automatic 23 Nali Liner Sheet Roll Forming Machine |
| Profile Type | 23 Nali / Multi-Rib Liner Profile |
| Input Coil Width | 1220 mm |
| Material Thickness | 0.30-0.80 mm |
| Suitable Material | PPGL / PPGI / GC / BGL / Galvanized & Colour-Coated Steel |
| Forming Stations | 18 Stations |
| Forming Speed | 50-60 m/min (High-Speed Configuration) |
| Main Motor | 7.5 HP |
| Shaft Diameter | 80 mm |
| Length Accuracy | ±1 mm |
| Cutting System | PLC-Controlled Hydraulic Shearing |
| Cutter Blade | Cr12 Hardened / Quenched Tool Steel |
| Hydraulic Power Pack | 5.5 kW |
| Decoiler | 7 Ton Hydraulic Decoiler - Available with Line |
| Automation | Automatic Length & Quantity Measurement |
| Machine Workflow | Decoiling → Feeding → Roll Forming → Length Measurement → Hydraulic Cutting → Output |
| Origin | Manufactured in Khopoli, Maharashtra, India |
Request Price Quotation for 23 Nali Liner Sheet Roll Forming Machine - 1220 mm
Get direct manufacturer pricing, delivery timeline, and custom specifications from Gagan Engineering Works:
- Phone: +91 83294 65245
- Email: gaganengineerings@gmail.com
- WhatsApp: Chat on WhatsApp
- Online RFQ: Submit Quotation Request
Warranty: 1 Year Comprehensive Manufacturer Warranty with Pan-India On-Site Commissioning
Export: Worldwide shipping from JNPT Mumbai Port. Custom voltage (220V/380V/415V/480V, 50Hz/60Hz)
Frequently Asked Questions — 23 Nali Liner Sheet Roll Forming Machine - 1220 mm
What material thickness can the liner machine process?
The machine is designed for 0.30 mm to 0.80 mm sheet thickness.
What is the input coil width?
The standard configuration is designed for 1220 mm wide coils.
Which materials can be processed?
The machine supports PPGI, PPGL, GC, BGL and other suitable colour-coated or galvanized steel coils.
What profile does the machine manufacture?
It is designed for the 23 Nali multi-rib liner profile, with tooling manufactured according to the approved profile/sample sheet.
Is a decoiler available with the machine?
Yes. A 7-ton hydraulic decoiler can be supplied as part of the production line.
